Exploring Deceptive Mazes with Novelty Search¶
This tutorial is part of the series of pyribs tutorials! See here for the list of all tutorials and the order in which they should be read.

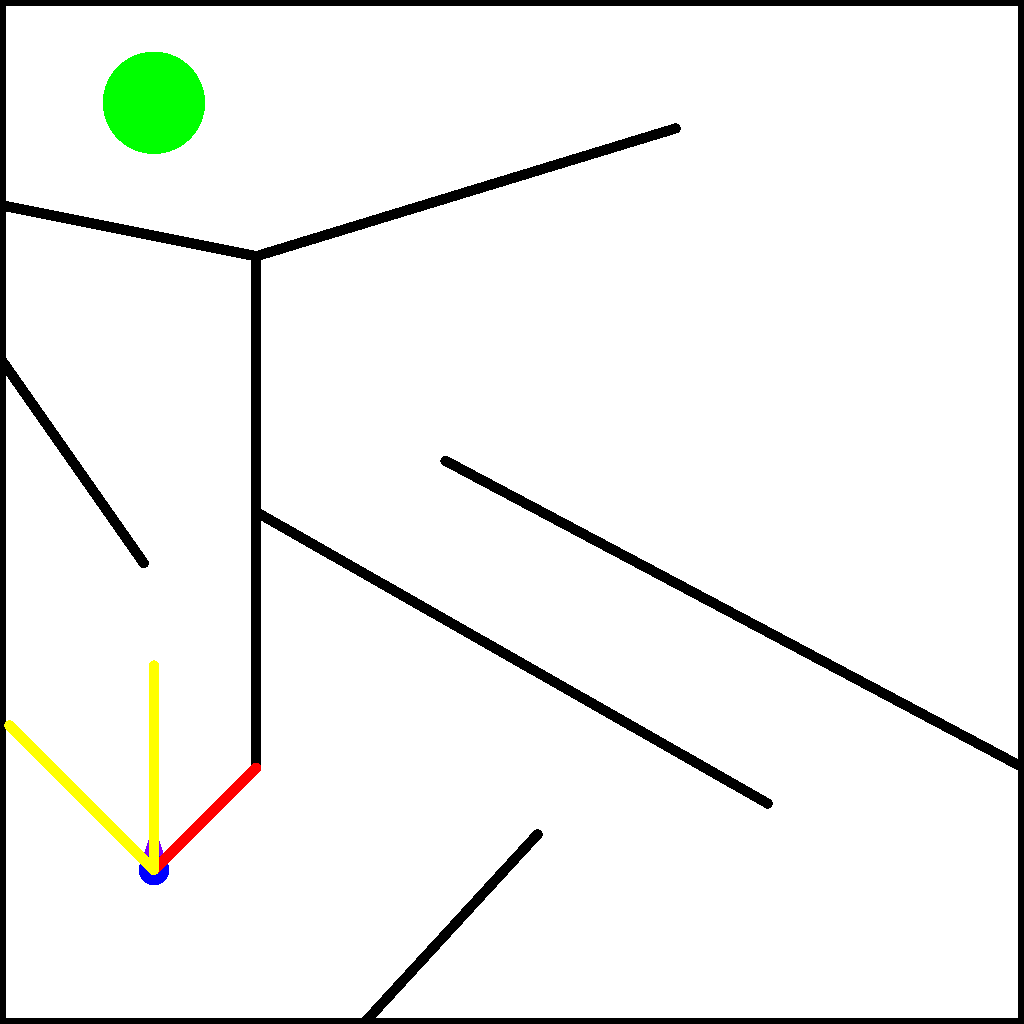

Consider a robot that needs to solve the maze below, introduced in Lehman 2011. To solve this problem, we need to train a robot policy that enables the robot to move from the starting position (red dot) to the goal position (green star).
At first glance, a reasonable approach seems to be to optimize an objective, i.e., to minimize the Euclidean distance between the robot’s current position and the goal position. However, this maze is deceptive, in that minimizing the Euclidean distance will cause the robot to get stuck behind a wall that is close to the goal, as shown below.
In fact, in order to solve the maze, the robot actually has to defy the objective! Namely, it has to increase its Euclidean distance from the goal position by going around the walls, as shown below.
This insight forms the basis for Novelty Search (NS) in Lehman 2011. In short, NS ignores the objective completely and instead seeks to discover a diverse set of solutions. For example, in the maze below, NS could search for individual robot policies that reach every possible \((x, y)\) position in the maze:
Ultimately, the result is two-fold: First, without considering the objective, NS solves the maze! Second, by seeking diversity, a single run of NS has created policies that go to every position in the maze, rather than just one position. In this tutorial, we will show how to achieve these results by providing an overview of NS and implementing it in pyribs.
Setup¶
%pip install ribs[visualize] "git+https://github.com/adaptive-intelligent-robotics/Kheperax" jax tqdm imageio
import sys
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
from jax.flatten_util import ravel_pytree
from tqdm import tqdm, trange
Maze Environment with Kheperax¶
We begin by setting up the maze environment in Kheperax. This environment contains a circular two-wheeled robot that navigates in a 2D maze for a single episode. The robot has three LiDAR sensors to estimate distance to walls, and two bumpers to detect contact with walls. Observations consist of the readings from the sensors and bumpers, and actions consist of the signals for the left and right wheels. The animation below (reproduced from the Kheperax repo) shows the robot navigating the maze with its sensors.
Kheperax accelerates simulation of the robot using JAX. As such, our first step is to set up JAX’s random keys. Note that JAX provides acceleration on the GPU, but for simplicity and since Kheperax is fairly small, this tutorial runs on CPU.
seed = 42
random_key = jax.random.PRNGKey(seed)
Next, we set up the Kheperax task. The robot’s policy is represented as an MLP that maps directly from observations to actions. The MLP has two hidden layers of size 8.
from kheperax.tasks.target import TargetKheperaxConfig, TargetKheperaxTask
# Define Task configuration
config_kheperax = TargetKheperaxConfig.get_default()
config_kheperax.episode_length = 250
config_kheperax.mlp_policy_hidden_layer_sizes = (8, 8)
# The default resolution is (1024, 1024), which takes a while to render.
config_kheperax.resolution = (256, 256)
random_key, subkey = jax.random.split(random_key)
# Create Kheperax Task.
(
env,
policy_network,
scoring_fn,
) = TargetKheperaxTask.create_default_task(
config_kheperax,
random_key=subkey,
)
scoring_fn = jax.jit(scoring_fn)
The networks in Kheperax are represented as pytrees, while pyribs typically expects 1D parameters. To interface with pyribs, we flatten the pytrees into vectors. Here, we pass an initial batch of observations through the network in order to set up the _array_to_pytree_fn for un-flattening solution parameters, and also to retrieve the dimensionality of the solution space solution_dim.
random_key, subkey = jax.random.split(random_key)
init_batch = jnp.zeros(shape=(1, env.observation_size))
init_parameters = policy_network.init(subkey, init_batch)
flattened_parameters, _array_to_pytree_fn = ravel_pytree(init_parameters)
solution_dim = len(flattened_parameters)
print("solution_dim:", solution_dim)
solution_dim: 138
To enable reaching diverse positions in the maze, the measures are defined as the final position of the robot at the end of each episode. Below we retrieve the bounds of this measure space (measures are referred to as behavior descriptors in Kheperax). For this maze, Kheperax also provides an objective based on the distance to the target position. However, note that Novelty Search ignores the objective.
min_bd, max_bd = env.behavior_descriptor_limits
bounds = [(min_bd[0], max_bd[0]), (min_bd[1], max_bd[1])]
print("bounds:", bounds)
bounds: [(0.0, 1.0), (0.0, 1.0)]
Finally, we define a function that evaluates a batch of candidate policies in the maze.
def evaluate(
params: np.ndarray, random_key: jax.Array
) -> tuple[np.ndarray, np.ndarray, dict]:
"""Evaluates a batch of robot policies in the maze environment.
Args:
params: (batch_size, solution_dim) array of policy parameters.
random_key: Random key for JAX.
Returns:
Tuple of (objectives, measures, info) from evaluating the policies in the
environment. The objective sums the negative distance to the target at each
timestep. The measures are the final (x, y) location of the robot.
"""
params: jax.Array = jnp.asarray(params)
params_pytree = jax.vmap(_array_to_pytree_fn)(params)
random_key, subkey = jax.random.split(random_key)
objectives, measures, info, _ = scoring_fn(params_pytree, subkey)
return np.asarray(objectives), np.asarray(measures), info
Novelty Search in pyribs¶
In previous tutorials, we discussed QD algorithms like CMA-ME that build on MAP-Elites and its grid archive. Historically, Novelty Search (NS), introduced in Lehman 2011, was one of the precursors to QD algorithms. Unlike QD algorithms, NS only searches for diversity in measure space, with no consideration for the objective. Below we describe the components of NS and how they are implemented in pyribs.
ProximityArchive¶
The archive in NS is unstructured, in that the solutions (i.e., policies) are not arranged in a grid like they are in MAP-Elites or CMA-ME. Instead, solutions are added to the archive if they are sufficiently novel. A solution’s novelty \(\rho\) is defined as its average distance in measure space to its \(k\)-nearest neighbors in the current archive:
Where \(x\) is the measure value of the solution, and \(\mu_{1..k}\) are the measure values of the solution’s \(k\)-nearest neighbors in measure space. Any distance function dist is permitted, but the most common (and the one we will use today) is Euclidean distance. If the novelty \(\rho\) of a solution exceeds some novelty threshold \(\rho_{min}\), then the solution is added to the archive.
In pyribs, this archive is available as the ProximityArchive. Below we instantiate a ProximityArchive for the maze problem. Note that since the archive is unstructured, we do not need to pass it the bounds of the measure space.
from ribs.archives import ProximityArchive
archive = ProximityArchive(
solution_dim=solution_dim,
measure_dim=2,
k_neighbors=15,
novelty_threshold=0.01,
)
In addition to the ProximityArchive, it is useful to define a passive result archive that stores solutions found during the search. As suggested in Pugh 2016, this archive is useful for recording metrics like coverage because it provides a fixed tessellation of the measure space. However, it does not play any role in Novelty Search itself. Its role is identical to the result archive in CMA-MAE.
from ribs.archives import GridArchive
result_archive = GridArchive(
solution_dim=solution_dim,
dims=(100, 100),
ranges=bounds,
)
Emitters¶
The NS archive can be combined with any evolutionary algorithm to search for solutions with diverse measures. Essentially, novelty will guide the algorithm instead of a typical objective. In pyribs, this means that any emitter can be combined with the ProximityArchive to search for diverse solutions. In this tutorial, we select the EvolutionStrategyEmitter that is also used in CMA-ME. Below we instantiate 5 such emitters.
from ribs.emitters import EvolutionStrategyEmitter
# Notes:
# - flattened_parameters was created when we initialized `_array_to_pytree_fn`
# - ranker="nov" indicates that the emitter will rank solutions by their novelty
emitters = [
EvolutionStrategyEmitter(
archive,
x0=np.asarray(flattened_parameters),
sigma0=0.5,
ranker="nov",
selection_rule="mu",
restart_rule="basic",
batch_size=30,
)
for _ in range(5)
]
Scheduler¶
Finally, we create a scheduler that combines all the components above.
from ribs.schedulers import Scheduler
scheduler = Scheduler(archive, emitters, result_archive)
Running Novelty Search in the Deceptive Maze¶
In short, Novelty Search proceeds as follows. First, we call scheduler.ask, in which the emitters generate solutions/policies for the robot. Next, we roll out the solutions in the maze with the evaluate function. In the call to scheduler.tell, if the solutions are sufficiently novel, they are added to the ProximityArchive. The solutions are also added to the GridArchive, which enables keeping track of metrics. Finally, the emitters are updated based on the novelty of each solution, so that they are guided to produce more novel solutions in the future. The execution loop below should take 5-10 min to run.
total_itrs = 2500
for itr in trange(1, total_itrs + 1, file=sys.stdout, desc="Iterations"):
solutions = scheduler.ask()
random_key, subkey = jax.random.split(random_key)
objectives, measures, info = evaluate(solutions, subkey)
scheduler.tell(objectives, measures)
# Logging.
if itr % 100 == 0 or itr == total_itrs:
tqdm.write(
f"Iteration {itr:5d} | "
f"Archive Size: {archive.stats.num_elites} "
f"Coverage: {result_archive.stats.coverage:6.3%}"
)
Iteration 100 | Archive Size: 3454 Coverage: 14.690%
Iteration 200 | Archive Size: 5060 Coverage: 20.810%
Iteration 300 | Archive Size: 5808 Coverage: 23.260%
Iteration 400 | Archive Size: 6599 Coverage: 26.290%
Iteration 500 | Archive Size: 7511 Coverage: 30.590%
Iteration 600 | Archive Size: 8328 Coverage: 34.440%
Iteration 700 | Archive Size: 9454 Coverage: 40.630%
Iteration 800 | Archive Size: 11137 Coverage: 49.140%
Iteration 900 | Archive Size: 12794 Coverage: 56.200%
Iteration 1000 | Archive Size: 14277 Coverage: 61.600%
Iteration 1100 | Archive Size: 15661 Coverage: 67.030%
Iteration 1200 | Archive Size: 16937 Coverage: 71.150%
Iteration 1300 | Archive Size: 17935 Coverage: 74.170%
Iteration 1400 | Archive Size: 18754 Coverage: 76.130%
Iteration 1500 | Archive Size: 19423 Coverage: 77.810%
Iteration 1600 | Archive Size: 20046 Coverage: 79.520%
Iteration 1700 | Archive Size: 20722 Coverage: 81.270%
Iteration 1800 | Archive Size: 21553 Coverage: 83.720%
Iteration 1900 | Archive Size: 22124 Coverage: 85.460%
Iteration 2000 | Archive Size: 22713 Coverage: 86.960%
Iteration 2100 | Archive Size: 23002 Coverage: 87.590%
Iteration 2200 | Archive Size: 23243 Coverage: 88.140%
Iteration 2300 | Archive Size: 23435 Coverage: 88.530%
Iteration 2400 | Archive Size: 23564 Coverage: 88.810%
Iteration 2500 | Archive Size: 23633 Coverage: 88.930%
Iterations: 100%|██████████████████████████████████████████████| 2500/2500 [03:45<00:00, 11.09it/s]
Visualizing the Archive¶

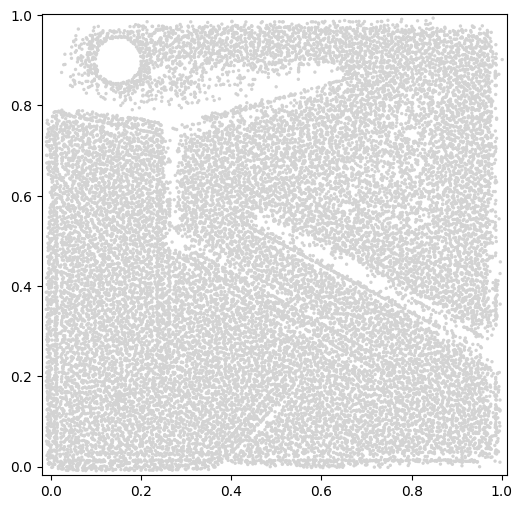

For visualizing Novelty Search, two options are available. First, we can visualize the ProximityArchive that Novelty Search generates. The proximity_archive_plot creates a scatterplot showing all points in the archive in measure space. Notice that the bounds of the plot are not exactly [0, 1]. This is because the proximity_archive_plot adjusts the bounds dynamically based on the points in the plot. Had we plotted the archive in the middle of the run, we may have seen smaller bounds. Also note that there is a circular hole in the top left corner of the archive. This hole is present because the episode ends as soon as the robot touches the circle, so no robot can have measures that are within the circle.
from ribs.visualize import proximity_archive_plot
plt.figure(figsize=(6, 6))
proximity_archive_plot(
archive,
ms=2,
aspect="equal",
# Since NS does not consider the objective, we make all points have the
# same color by setting a colormap that has a single color. We also remove
# the colorbar.
cmap=["lightgray"],
cbar=None,
)
In addition to the main archive, we can plot the result archive with grid_archive_heatmap. This can be useful if we are comparing to other algorithms that use grid archives, such as MAP-Elites.
from ribs.visualize import grid_archive_heatmap
plt.figure(figsize=(6, 6))
grid_archive_heatmap(
result_archive,
cmap=["lightgray"],
cbar=None,
aspect="equal",
)
Conclusion¶
In this tutorial, we demonstrated how to set up Novelty Search in pyribs and search for diverse policies in the classic deceptive maze environment. Since its introduction in 2011, the maze environment has become one of the most popular benchmarks in the QD community, with plenty of works running their algorithms in it and extending it to other layouts. Meanwhile, Novelty Search has become a foundational work in the field and has inspired a wide array of algorithms. We hope this tutorial serves as a helpful starting point for using pyribs to explore Novelty Search and its role in QD.
